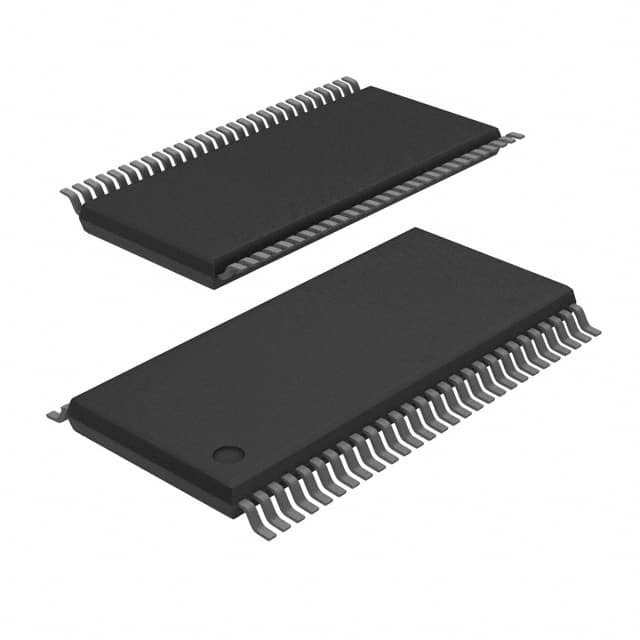

SN65LVDS93DGGR

SKU: 127663

Manufacturer: Texas Instruments

LVDS Serializer 1904Mbps 0.454V 56-Pin TSSOP T/R

5300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Function	Serializer
Number of Drivers	1
Number of Receivers	1
Number of Elements per pcs	4
Transmission Data Rate (Mbps)	1904
Minimum Operating Frequency (MHz)	20
Maximum Operating Frequency (MHz)	68
Input Signal Type	LVCMOS
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Differential Output Voltage (V)	0.454
Typical Operating Supply Voltage (V)	3.3
Maximum Power Dissipation (mW)	1377
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	56
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	6.2(Max)
PCB changed	56
