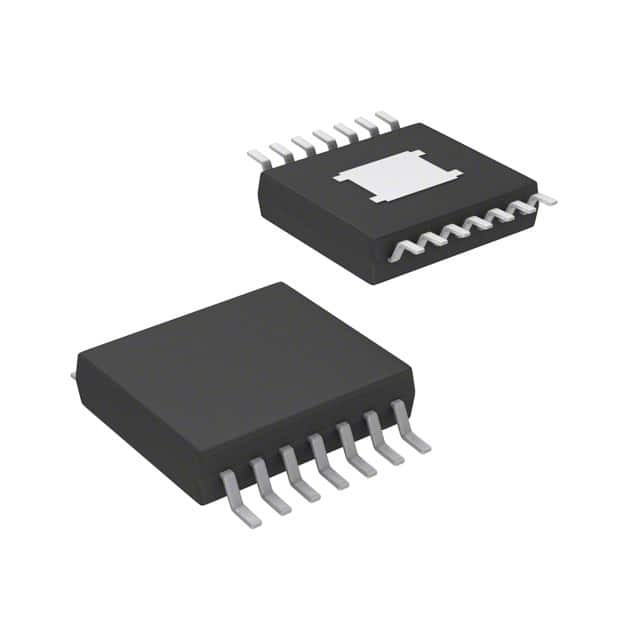

SN10503PWP

SKU: 42880

Manufacturer: Texas Instruments

Video Amp Triple 120MHz ±9V 18V 14-Pin HTSSOP EP Tube

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Number of Circuits	3
Typical Gain Bandwidth Product (MHz)	120
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	18
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±9
Power Supply Type	Single
Maximum Power Dissipation (mW)	2670
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
