    PrevPTN78060WAZ
    NextPTV12010WAD

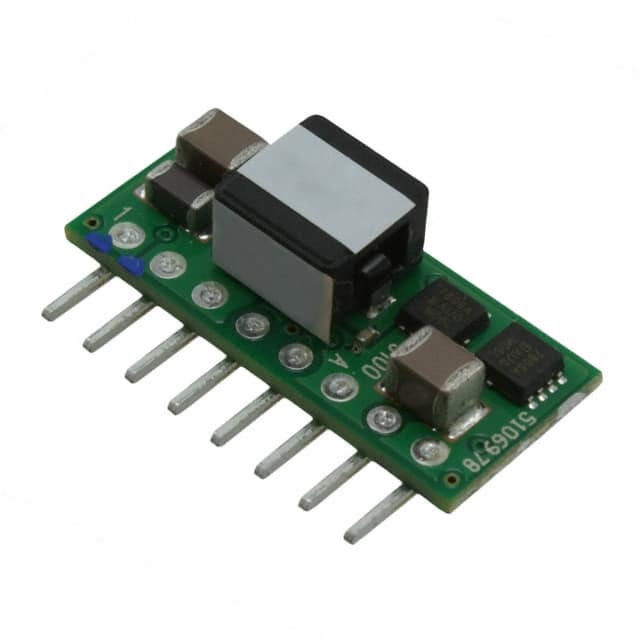

    PTV05010WAH

    SKU: 94436
    Manufacturer: Texas Instruments
    Module DC-DC 5VIN 1-OUT 0.8V to 3.6V 8A 8-Pin SIP Module Tray
    Request Free Samples
    240 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.40.60.18
    Automotive No
    PPAP No
    Type Step Down
    Number of Outputs 1
    Isolation Non-Isolated
    Minimum Input Voltage (V) 4.5
    Typical Input Voltage (V) 5
    Maximum Input Voltage (V) 5.5
    Output Voltage (V) 0.8 to 3.6
    Output Current (A) 8
    Input/Output Type DC/DC
    Typical Standby Current (mA) 5
    Switching Frequency (kHz) 650
    Switching Regulator Yes
    Load Regulation 5mV(Typ)
    Line Regulation 5mV(Typ)
    Efficiency (%) 95(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Product Weight (g) 2.5
    Output Type Adjustable
    Original Package SIP Module
    Pin Count 8
    Standard Package Method SIM
    Terminal Form Through Hole
    Package Height 10.15
    Package Length 22.86
    Package Width 8.38(Max)
    PCB changed 8
