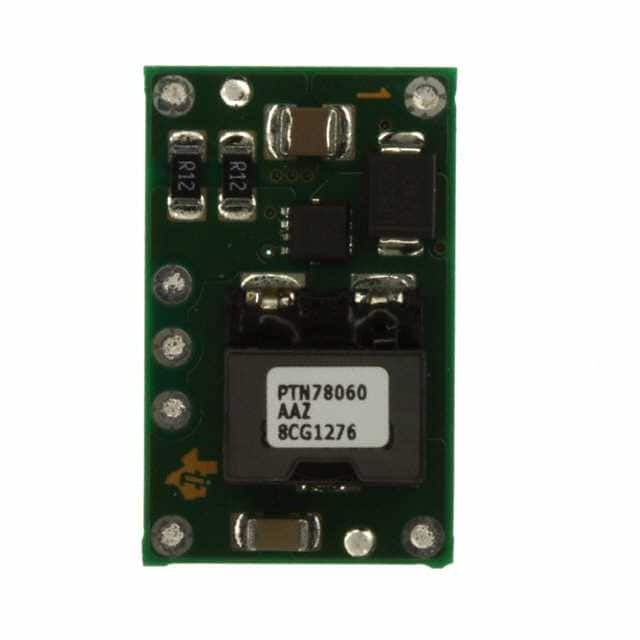

    PTN78060AAZ

    SKU: 122826
    Manufacturer: Texas Instruments
    Module DC-DC 1-OUT -3V to -15V 3A 15W Automotive 7-Pin SMD Module Tray
    Request Free Samples
    890 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.40.95.80
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Type Step Down
    Isolation Non-Isolated
    Number of Outputs 1
    Minimum Input Voltage (V) 9
    Maximum Input Voltage (V) 29
    Output Voltage (V) -3 to -15
    Output Current (A) 3
    Output Power (W) 15
    Input/Output Type DC/DC
    Switching Frequency (kHz) 660
    Switching Regulator Yes
    Load Regulation 10mV(Typ)
    Line Regulation 10mV(Typ)
    Efficiency (%) 88(Typ)
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Product Weight (g) 3.9
    Output Type Adjustable
    Original Package SMD Module
    Pin Count 7
    Standard Package Method SMD Module
    Terminal Form Surface Mount
    Package Height 9(Max) - 0.25(Min)
    Package Length 25.27
    Package Width 15.75
    PCB changed 7
