    PrevPTH04T230WAZ
    NextPTH05000WAS

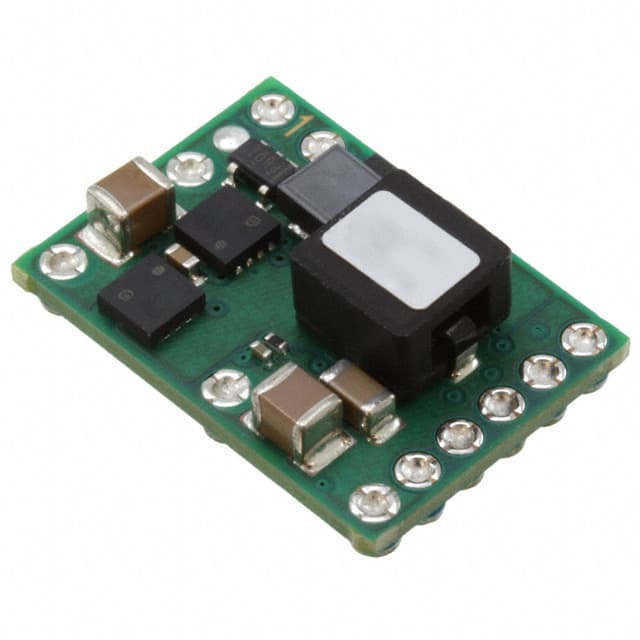

    PTH04T240WAZ

    SKU: 35236
    Manufacturer: Texas Instruments
    Module DC-DC 1-OUT 0.69V to 3.6V 10A 11-Pin SMD Module Tray
    Request Free Samples
    1210 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8504.40.95.80
    Automotive No
    PPAP No
    Type Step Down
    Number of Outputs 1
    Isolation Non-Isolated
    Minimum Input Voltage (V) 2.2
    Maximum Input Voltage (V) 5.5
    Output Voltage (V) 0.69 to 3.6
    Process Technology TurboTrans
    Output Current (A) 10
    Input/Output Type DC/DC
    Typical Standby Current (mA) 5
    Switching Frequency (kHz) 300(Typ)
    Switching Regulator No
    Load Regulation 2mV(Typ)
    Line Regulation 3mV(Typ)
    Efficiency (%) 94(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Product Weight (g) 3.8
    Output Type Adjustable
    Original Package SMD Module
    Pin Count 11
    Standard Package Method SMD Module
    Terminal Form Surface Mount
    Package Length 22.1
    Package Width 15.75
