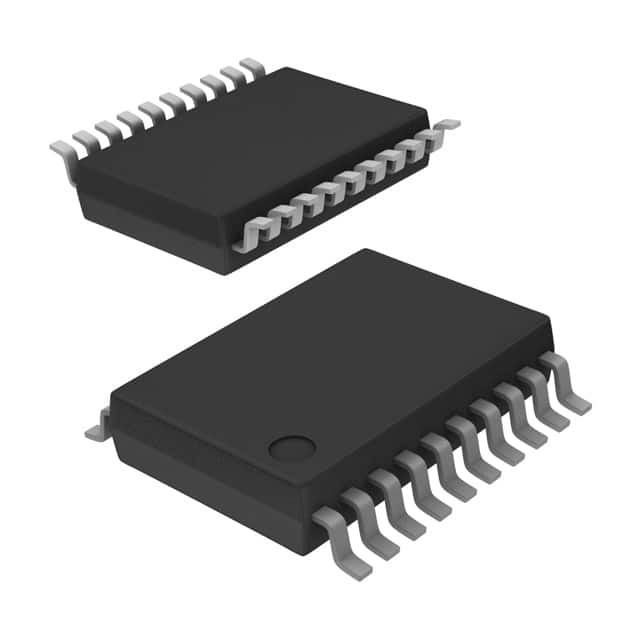

PLL1700E/2K

SKU: 141436

Manufacturer: Texas Instruments

Clock Generator 26.73MHz to 27.27MHz-IN 36.864MHz-OUT 20-Pin SSOP T/R

30760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs per Chip	6
Clock Input Frequency (MHz)	26.73 to 27.27
Maximum Output Frequency (MHz)	36.864
Typical Duty Cycle (%)	50
Input Logic Level	Crystal
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Power Dissipation (mW)	110
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	7.5(Max)
Package Width	5.6(Max)
PCB changed	20
