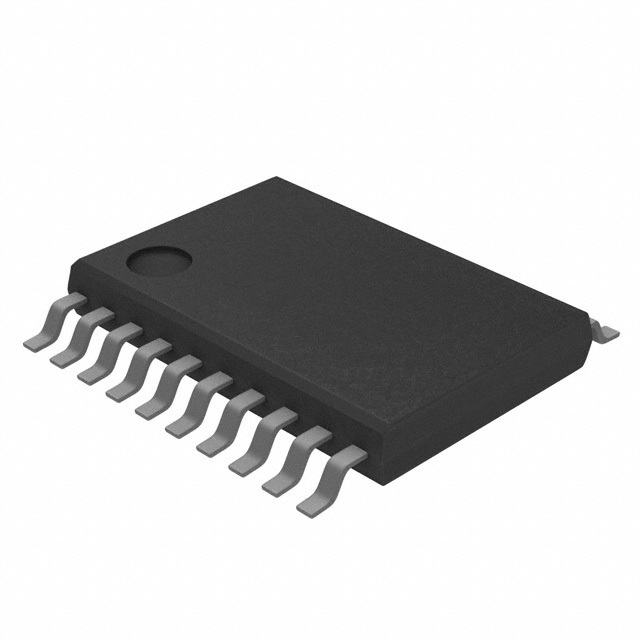

PGA117AIPWR

SKU: 56529

Manufacturer: Texas Instruments

SP Amp Variable Gain Amp Single R-R I/O 5.5V 20-Pin TSSOP T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Programmable Gain Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Minimum PSRR (dB)	106.02(Typ)
Maximum Input Offset Voltage (mV)	0.325@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	2.2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Resistance (MOhm)	10000(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
