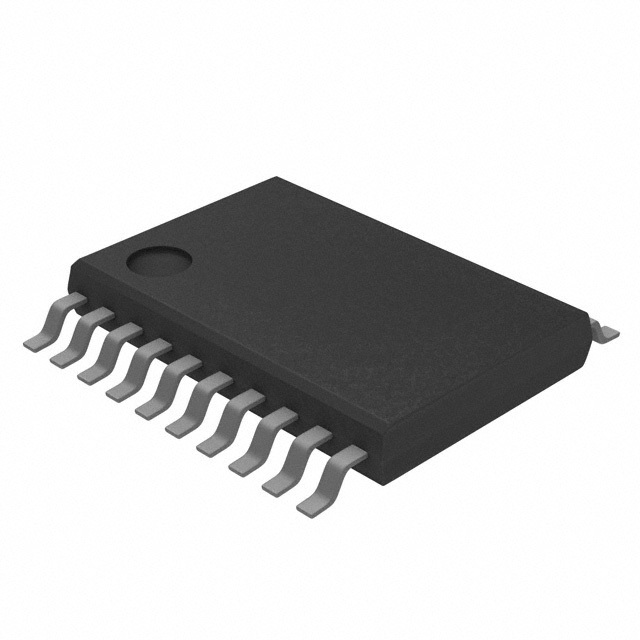

PCM5100APW

SKU: 52217

Manufacturer: Texas Instruments

DAC 2-CH Segment 32-bit 20-Pin TSSOP Tube

3120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Segment
Resolution	32bit
Conversion Rate	384ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	Serial (3-Wire)
Output Type	Voltage
Output Polarity	Unipolar
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	187
Full Scale Error	±6%FSR
Signal to Noise Ratio	100dB(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
