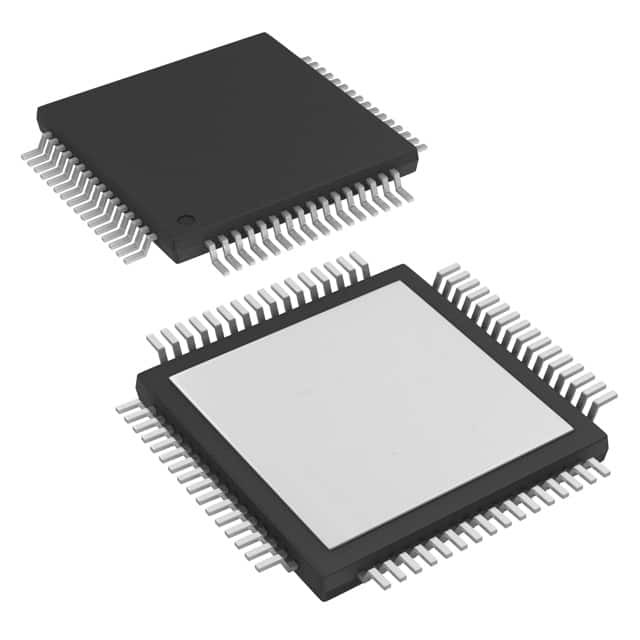

PCM4204PAPR

SKU: 63464

Manufacturer: Texas Instruments

4-Channel Quad ADC Delta-Sigma 216ksps 24-bit Serial 64-Pin HTQFP EP T/R

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	4
Number of Input Channels	4
Sampling Rate	216ksps
Digital Interface Type	Serial
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	6Vp-p
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	640
Maximum Power Dissipation (mW)	795
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-10
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	64
Standard Package Method	QFP
Original Package	HTQFP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	10.2(Max)
Package Width	10.2(Max)
PCB changed	64
