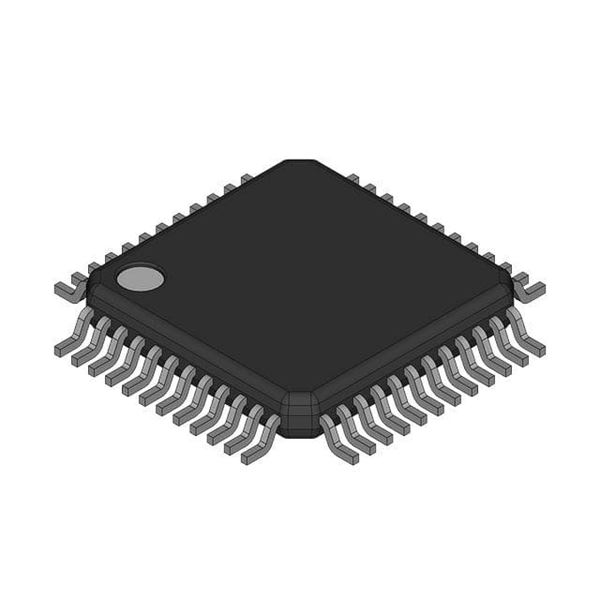

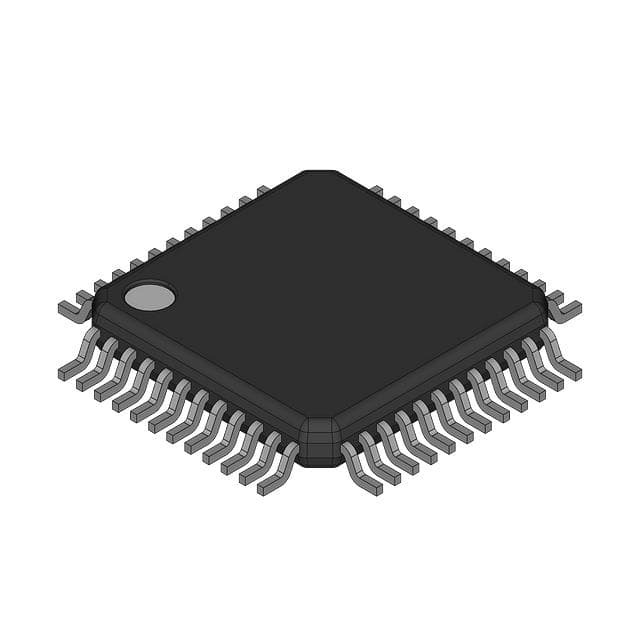

PCM4104PFBR

SKU: 56504

Manufacturer: Texas Instruments

DAC 4-CH Delta-Sigma 24-bit 48-Pin TQFP T/R

11530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Delta-Sigma
Resolution	24bit
Conversion Rate	216ksps
Number of DAC Channels	4
Number of Outputs per Chip	4
Digital Interface Type	Serial (3-Wire, 4-Wire, SPI)
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	256
Full Scale Error	0.5%FSR(Typ)
Signal to Noise Ratio	119dB(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-10
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	48
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7.2(Max)
Package Width	7.2(Max)
PCB changed	48
