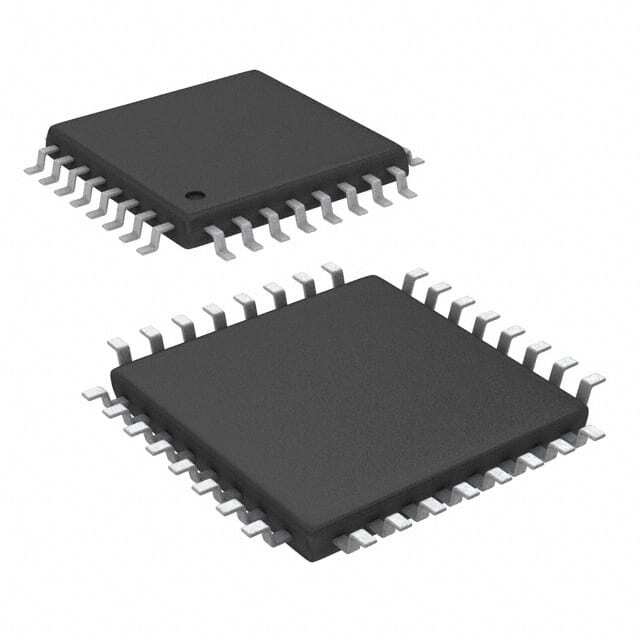

PCM1851APJTR

SKU: 35068

Manufacturer: Texas Instruments

12-Channel Dual ADC Delta-Sigma 96ksps 24-bit Serial 32-Pin TQFP T/R

140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Delta-Sigma
Resolution	24bit
Number of ADCs	2
Number of Input Channels	12
Sampling Rate	96ksps
Digital Interface Type	Serial (I2C)
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	Internal
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Analog and Digital
Input Voltage	±1.5V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Typical Power Dissipation (mW)	180
Maximum Power Dissipation (mW)	208
Full Scale Error	±5%FSR
Signal to Noise Ratio	104dB(Typ)
Sample and Hold	No
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	32
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	7
Package Width	7
PCB changed	32
