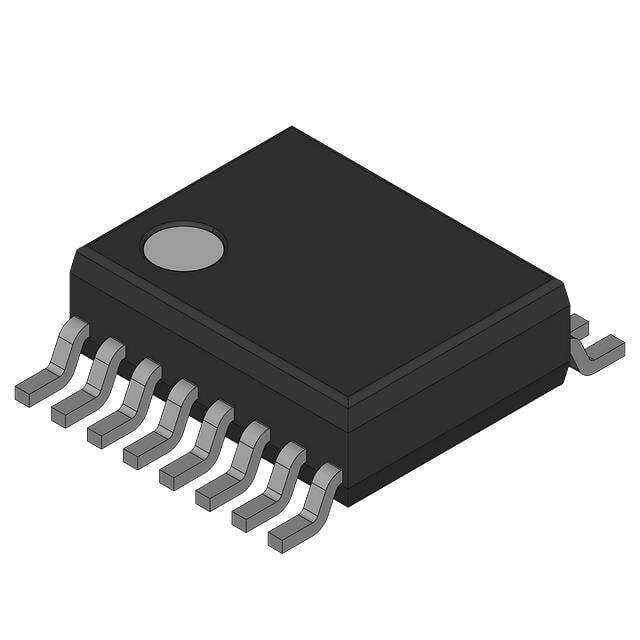

PCM1754DBQR

SKU: 148318

Manufacturer: Texas Instruments

DAC 2-CH Delta-Sigma 24-bit 16-Pin SSOP T/R

12300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Architecture	Delta-Sigma
Resolution	24bit
Conversion Rate	192ksps
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	Serial (3-Wire)
Output Type	Voltage
Output Polarity	Bipolar
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	105
Integral Nonlinearity Error	±0.5dB(Typ)
Full Scale Error	±6%FSR
Signal to Noise Ratio	106dB(Typ)
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	16
