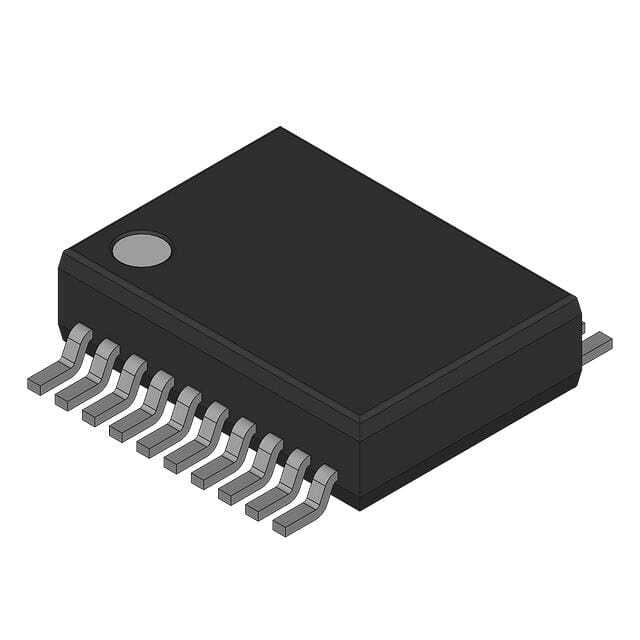

PCM1606E/2K

SKU: 28034

Manufacturer: Texas Instruments

DAC 6-CH Delta-Sigma 24-bit 20-Pin SSOP T/R

5260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	Audio
Process Technology	CMOS
Architecture	Delta-Sigma
Resolution	24bit
Conversion Rate	192ksps
Number of DAC Channels	6
Number of Outputs per Chip	6
Digital Interface Type	Serial (5-Wire)
Output Type	Voltage
Output Polarity	Bipolar
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Analog and Digital
Maximum Power Dissipation (mW)	358
Integral Nonlinearity Error	±0.5dB
Full Scale Error	±1%FSR(Typ)
Signal to Noise Ratio	103dB(Typ)
Digital Supply Support	Yes
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	7.5(Max)
Package Width	5.6(Max)
PCB changed	20
