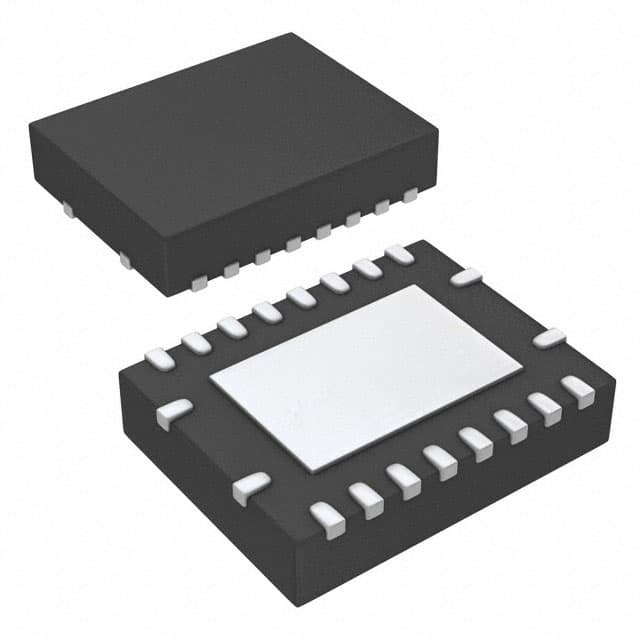

PCF8574RGYR Texas Instruments

PCF8574RGYR

SKU: 84566

Manufacturer: Texas Instruments

I2C Interface 100kHz 6V 20-Pin VQFN EP T/R

Request Free Samples

13020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of I/Os	8
Number of Addresses	8
Manual Reset	No
Interface Type	I2C
Interface Speed (kHz)	100
I2C Bus Interface Mode	Standard Mode
Interrupt Output	Yes
Output Type	Open Drain
Operating Supply Voltage-Min (V)	2.5
Operating Supply Voltage-Max (V)	6
Maximum Sink Current per Bit (mA)	25
Maximum Source Current per Bit (mA)	-1
Maximum Quiescent Current (uA)	10
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.65(Max)
Package Width	3.65(Max)
PCB changed	20
