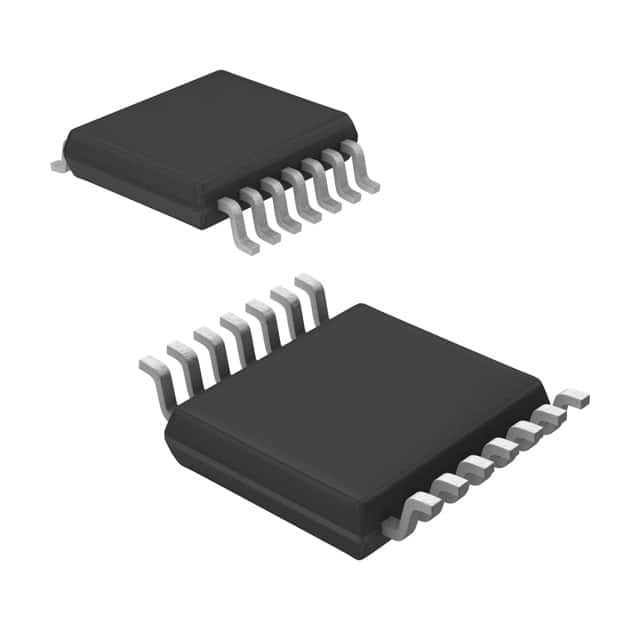

PCA9554APW

SKU: 126992

Manufacturer: Texas Instruments

I2C/SMBus Interface 100kHz/400kHz 5.5V 16-Pin TSSOP Tube

34900 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Number of I/Os	8
Number of Addresses	8
Manual Reset	No
Interface Type	I2C
Interface Speed (kHz)	400
I2C Bus Interface Mode	Standard Mode
Interrupt Output	Yes
Output Type	Open Drain
Operating Supply Voltage-Min (V)	2.3
Operating Supply Voltage-Max (V)	5.5
Maximum Sink Current per Bit (mA)	25
Maximum Source Current per Bit (mA)	-10
Maximum Quiescent Current (uA)	700
Operating Temperature-Min	-40
Operating Temperature-Max	85
Maximum ESD Protection Voltage (kV)	2@HBM/1@CDM/0.2@MM
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
