OPA602AU/2K5E4

SKU: 73236

Manufacturer: Texas Instruments

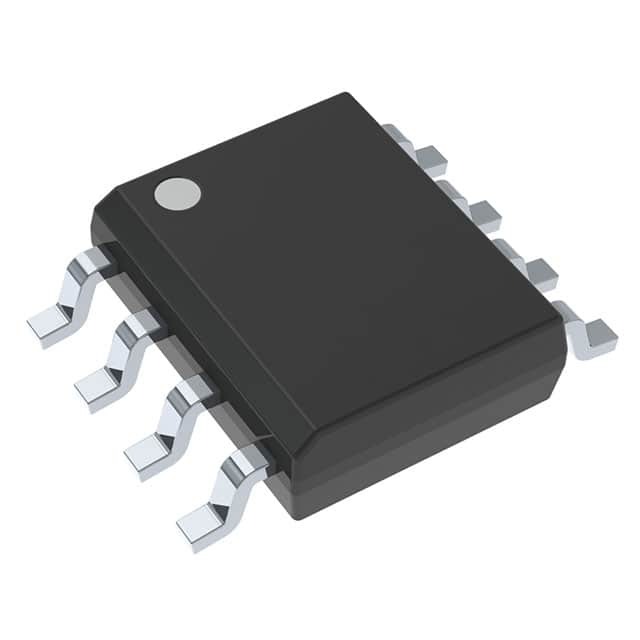

Op Amp Single Wideband Amplifier ±18V 8-Pin SOIC T/R

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	1
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	3@±15V
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.00001@±15V
Maximum Input Bias Current (uA)	0.00001@±15V
Typical Output Current (mA)	20@±15V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Typical Slew Rate (V/us)	35@±15V
Typical Input Noise Voltage Density (nV/rtHz)	23@±15V
Typical Voltage Gain (dB)	100
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@±15V
Minimum CMRR (dB)	75
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	6.5
Typical Settling Time (ns)	600
Shut Down Support	No
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5(Max)
Package Width	3.98(Max)
PCB changed	8
