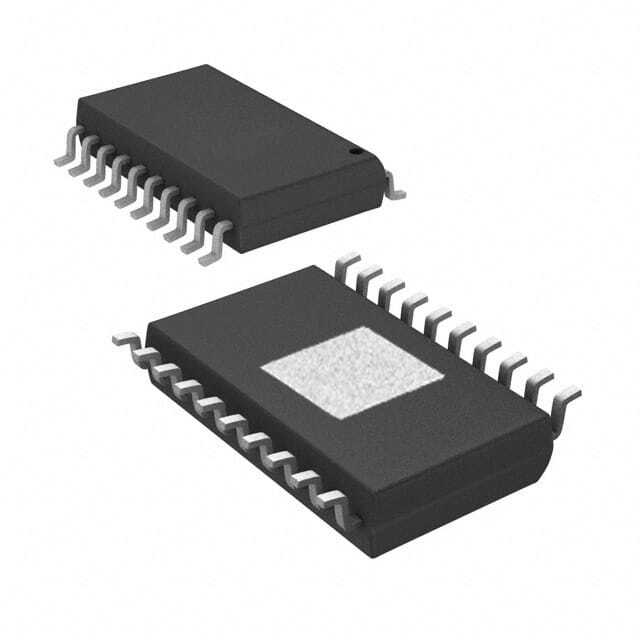

OPA569AIDWPR

SKU: 84512

Manufacturer: Texas Instruments

Op Amp Single Power Amplifier R-R I/O 5.5V 20-Pin HSOIC EP T/R

3230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Power Amplifier
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Maximum Input Offset Voltage (mV)	2@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Minimum Dual Supply Voltage (V)	±1.35
Maximum Dual Supply Voltage (V)	±2.75
Maximum Input Offset Current (uA)	0.00001@5.5V
Typical Input Bias Current (uA)	0.000001@5.5V
Maximum Input Bias Current (uA)	0.00001@5.5V
Maximum Quiescent Current (mA)	11@5.5V
Typical Output Current (mA)	2200
Typical Output Resistance (Ohm)	12000000
Power Supply Type	Dual
Typical Slew Rate (V/us)	1.2@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	12@5.5V
Typical Voltage Gain (dB)	126
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5.5V
Minimum PSRR (dB)	98.42(Typ)
Minimum CMRR (dB)	60
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	1.2
Typical Settling Time (ns)	5000
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	20
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	2.5(Max)
Package Length	12.95(Max)
Package Width	7.59(Max)
PCB changed	20
