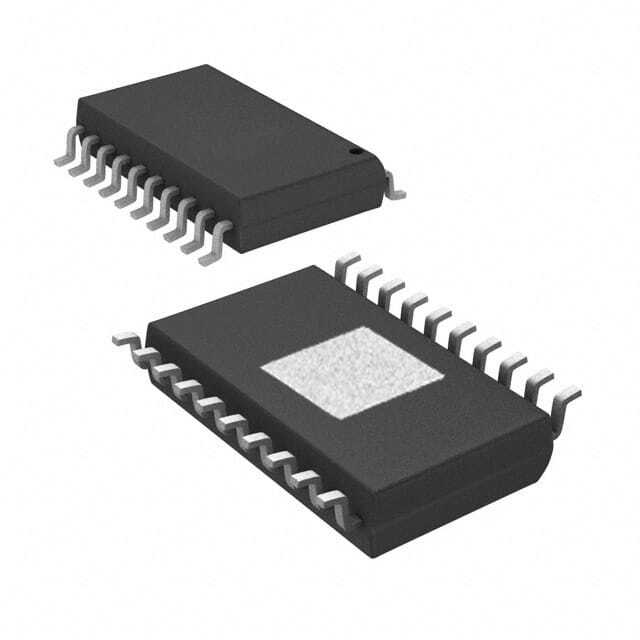

OPA564AIDWP

SKU: 87356

Manufacturer: Texas Instruments

Op Amp Single High Current Amplifier ±12V/24V 20-Pin HSOIC EP Tube

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Current Amplifier
Manufacturer Type	High Current Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	20@±12V
Minimum Single Supply Voltage (V)	7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	24
Minimum Dual Supply Voltage (V)	±3.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±12
Maximum Input Offset Current (uA)	0.0001@±12V
Typical Input Bias Current (uA)	0.00001@±12V
Maximum Input Bias Current (uA)	0.0001@±12V
Typical Output Current (mA)	1500@±12V
Typical Output Resistance (Ohm)	10
Power Supply Type	Single
Typical Slew Rate (V/us)	40@±12V
Typical Input Noise Voltage Density (nV/rtHz)	102.8@±12V
Typical Voltage Gain (dB)	108
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@±12V
Minimum PSRR (dB)	100(Typ)
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	17
Typical Settling Time (ns)	800
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	2.5(Max)
Package Length	12.95(Max)
Package Width	7.59(Max)
PCB changed	20
