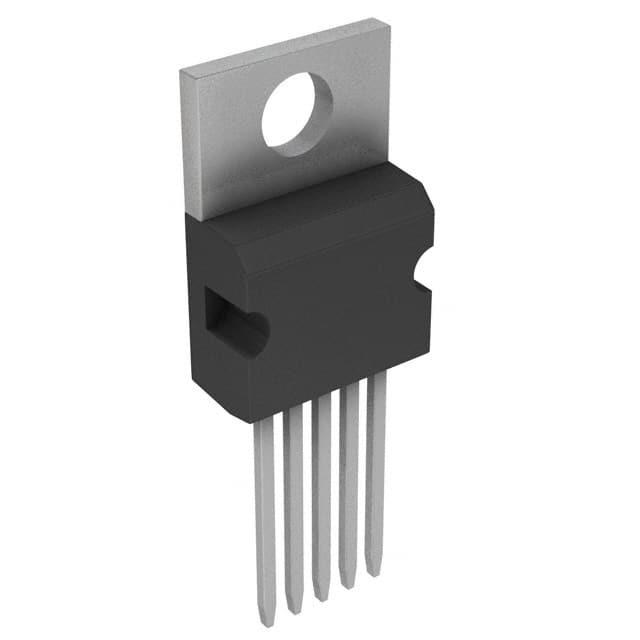

OPA544T

SKU: 27960

Manufacturer: Texas Instruments

Op Amp Single High Output Current Amplifier ±35V 5-Pin(5+Tab) TO-220 Tube

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Output Current Amplifier
Manufacturer Type	High Output Current Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	5@±35V
Minimum Dual Supply Voltage (V)	±10
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±35
Maximum Input Offset Current (uA)	0.0001@±35V
Maximum Input Bias Current (uA)	0.0001@±35V
Power Supply Type	Dual
Typical Slew Rate (V/us)	8@±35V
Typical Input Noise Voltage Density (nV/rtHz)	36@±35V
Typical Voltage Gain (dB)	103
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.003@±35V
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	1.4
Typical Settling Time (ns)	2500
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended Industrial
Packing Method	Tube
Original Package	TO-220
Pin Count	5
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.25(Max)
Package Length	10.67(Max)
Package Width	4.83(Max)
PCB changed	5
