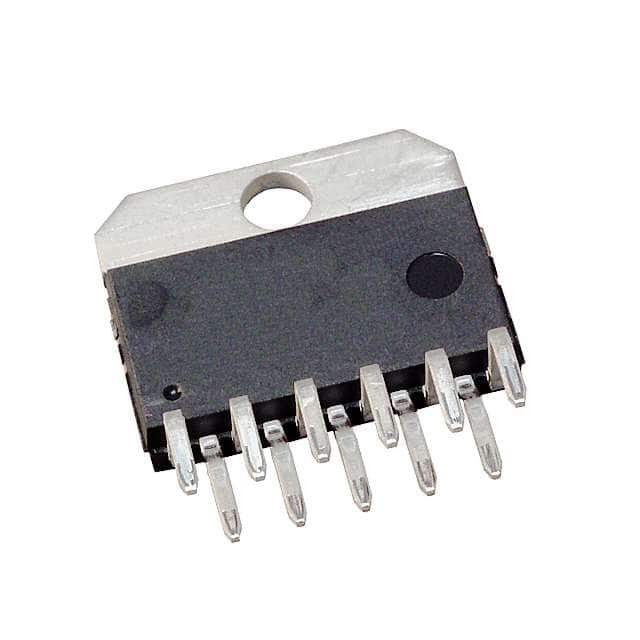

OPA541AP

SKU: 56426

Manufacturer: Texas Instruments

Op Amp Single High Output Current Amplifier ±35V/70V 11-Pin(11+Tab) TO-220 Tube

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Output Current Amplifier
Manufacturer Type	High Output Current Amplifier
Number of Channels per Chip	1
Process Technology	BiFET
Maximum Input Offset Voltage (mV)	10@±35V
Minimum Single Supply Voltage (V)	20
Typical Single Supply Voltage (V)	24
Maximum Single Supply Voltage (V)	70
Minimum Dual Supply Voltage (V)	±10
Typical Dual Supply Voltage (V)	±30
Maximum Dual Supply Voltage (V)	±35
Maximum Input Offset Current (uA)	0.00003@±35V
Maximum Input Bias Current (uA)	0.00005@±35V
Power Supply Type	Single
Typical Slew Rate (V/us)	10@±35V
Typical Voltage Gain (dB)	97
Minimum CMRR (dB)	95
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	1.6
Typical Settling Time (ns)	2000
Shut Down Support	No
Operating Temperature-Min	-25
Operating Temperature-Max	85
Packing Method	Tube
Original Package	TO-220
Pin Count	11
Terminal Form	Through Hole
Package Height	11.1(Max)
Package Length	20.27(Max)
Package Width	4.62(Max)
PCB changed	11
