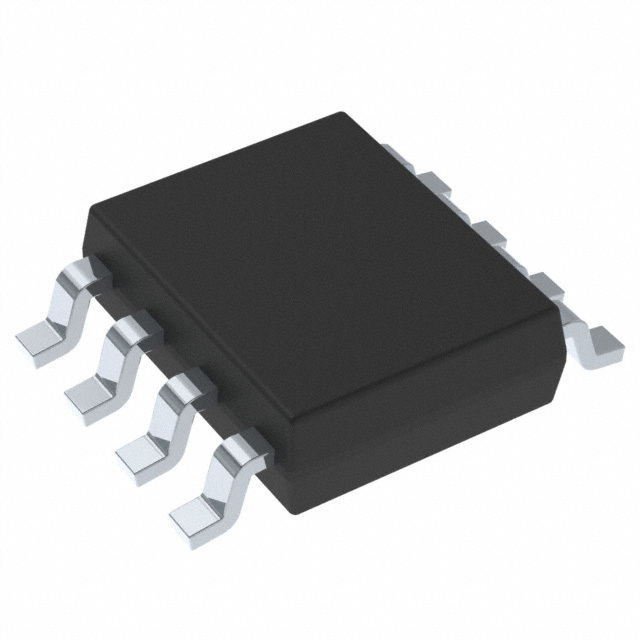

OPA454AIDDAR

SKU: 112780

Manufacturer: Texas Instruments

Op Amp Single High Voltage Amplifier ±50V/100V 8-Pin HSOIC EP T/R

1080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	High Voltage Amplifier
Manufacturer Type	High Voltage Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	4@±50V
Minimum Single Supply Voltage (V)	10
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	100
Minimum Dual Supply Voltage (V)	±5
Typical Dual Supply Voltage (V)	±50
Maximum Dual Supply Voltage (V)	±50
Maximum Input Offset Current (uA)	0.0001@±50V
Typical Input Bias Current (uA)	0.0000014@±50V
Maximum Input Bias Current (uA)	0.0001@±50V
Maximum Quiescent Current (mA)	4@±50V
Power Supply Type	Single
Typical Slew Rate (V/us)	13@±50V
Typical Input Noise Voltage Density (nV/rtHz)	300@±50V
Typical Voltage Gain (dB)	130
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.04@±50V
Minimum PSRR (dB)	92.04(Typ)
Minimum CMRR (dB)	100
Minimum CMRR Range (dB)	95 to 105
Typical Gain Bandwidth Product (MHz)	2.5
Typical Settling Time (ns)	10000
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
