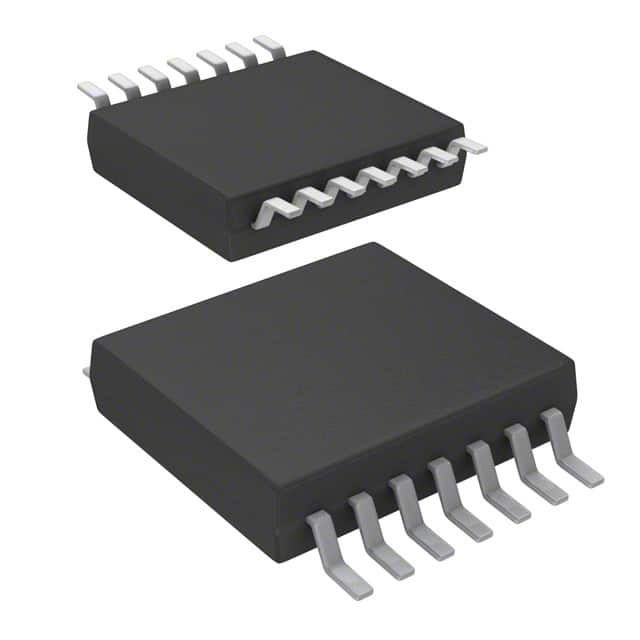

OPA4172IPW

SKU: 52195

Manufacturer: Texas Instruments

Op Amp Quad Precision Amplifier R-R O/P ±18V/36V 14-Pin TSSOP Tube

2220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	4
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	1@±18V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2.25
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Maximum Input Offset Current (uA)	0.000015@±18V
Maximum Input Bias Current (uA)	0.000015@±18V
Maximum Quiescent Current (mA)	7.2@±18V
Power Supply Type	Single
Typical Slew Rate (V/us)	10@±18V
Typical Input Noise Voltage Density (nV/rtHz)	12@±18V
Typical Voltage Gain (dB)	130
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0016@±18V
Minimum PSRR (dB)	120(Typ)
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	10
Typical Settling Time (ns)	3200
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
