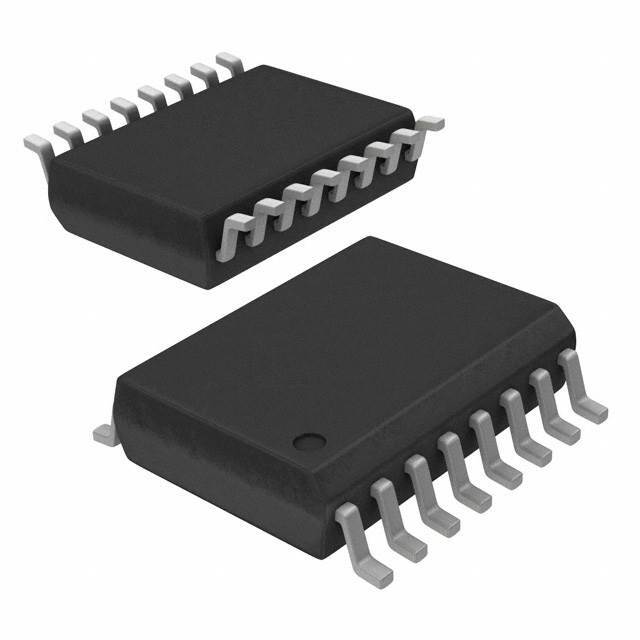

    OPA404KU/1KE4

    SKU: 80245
    Manufacturer: Texas Instruments
    Op Amp Quad Wideband Amplifier ±18V 16-Pin SOIC T/R
    3080 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    SVHC Yes
    Automotive No
    PPAP No
    Type Wideband Amplifier
    Manufacturer Type Wideband Amplifier
    Number of Channels per Chip 4
    Process Technology BiFET
    Maximum Input Offset Voltage (mV) 2.5@±15V
    Minimum Dual Supply Voltage (V) ±5
    Typical Dual Supply Voltage (V) ±15
    Maximum Dual Supply Voltage (V) ±18
    Maximum Input Offset Current (uA) 0.000012@±15V
    Maximum Input Bias Current (uA) 0.000012@±15V
    Typical Output Current (mA) 10@±15V
    Power Supply Type Dual
    Maximum Power Dissipation (mW) 1000
    Typical Slew Rate (V/us) 35@±15V
    Typical Input Noise Voltage Density (nV/rtHz) 32@±15V
    Typical Voltage Gain (dB) 100
    Typical Noninverting Input Current Noise Density (pA/rtHz) 0.0006@±15V
    Minimum CMRR (dB) 84
    Minimum CMRR Range (dB) 80 to 85
    Typical Gain Bandwidth Product (MHz) 6.4
    Typical Settling Time (ns) 1500
    Shut Down Support No
    Operating Temperature-Min 0
    Operating Temperature-Max 70
    Packing Method Tape and Reel
    Pin Count 16
    Standard Package Method SOP
    Original Package SOIC
    Terminal Form Surface Mount
    Package Height 2.35(Max)
    Package Length 10.5(Max)
    Package Width 7.6(Max)
    PCB changed 16
