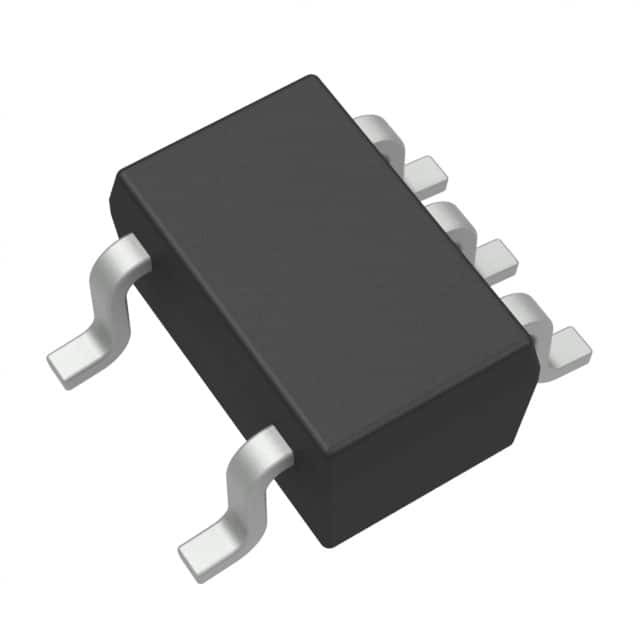

OPA349SA/3KG4

SKU: 13760

Manufacturer: Texas Instruments

Op Amp Single Low Input Bias Current Amplifier R-R I/O 5.5V 5-Pin SC-70 T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Input Bias Current Amplifier
Manufacturer Type	Low Input Bias Current Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	10@5V
Minimum Single Supply Voltage (V)	1.8
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.00001@5.5V
Maximum Input Bias Current (uA)	0.00001@5.5V
Maximum Quiescent Current (mA)	0.002@5.5V
Typical Output Current (mA)	8@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.02@5V
Typical Input Noise Voltage Density (nV/rtHz)	300@5V
Typical Voltage Gain (dB)	90
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@5V
Minimum PSRR (dB)	69.12(Typ)
Minimum CMRR (dB)	48
Minimum CMRR Range (dB)	<50
Typical Gain Bandwidth Product (MHz)	0.07
Typical Settling Time (ns)	80000
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT-323
Original Package	SC-70
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.15(Max)
Package Width	1.4(Max)
PCB changed	5
