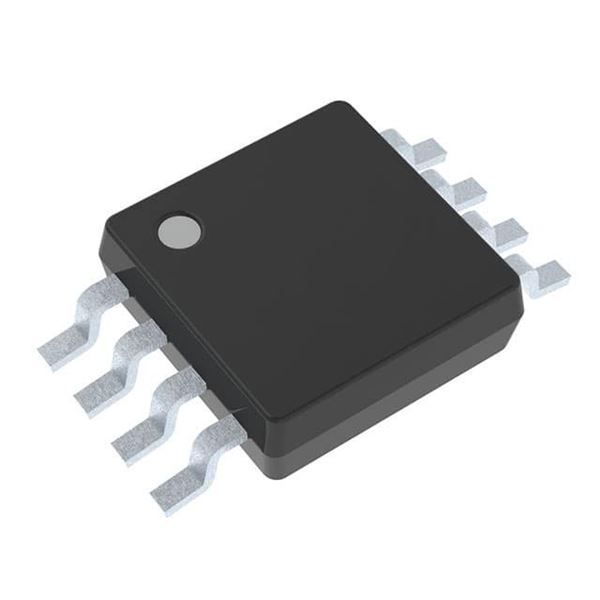

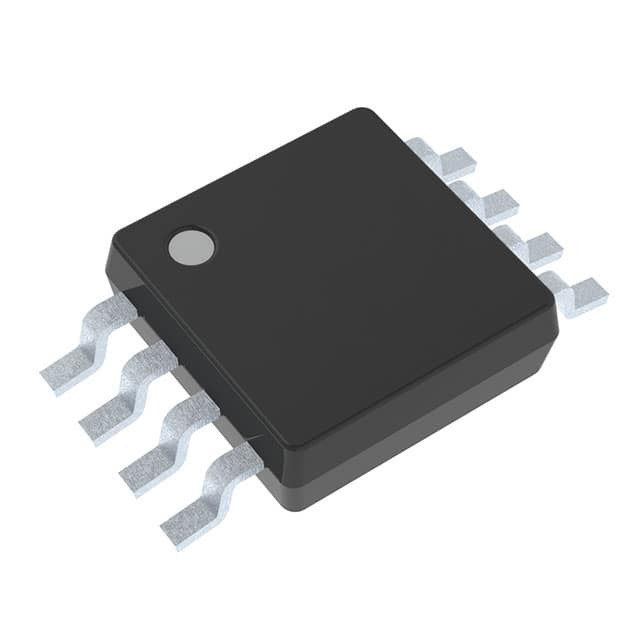

OPA337EA/250

SKU: 23713

Manufacturer: Texas Instruments

Op Amp Single Wideband Amplifier R-R O/P 5.5V 8-Pin VSSOP T/R

1670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Wideband Amplifier
Manufacturer Type	Wideband Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	3@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.00001@5.5V
Maximum Input Bias Current (uA)	0.00001@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	1.2@5V
Typical Input Noise Voltage Density (nV/rtHz)	26@5V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.0006@5V
Minimum PSRR (dB)	92.04(Typ)
Minimum CMRR (dB)	74
Minimum CMRR Range (dB)	71 to 75
Typical Gain Bandwidth Product (MHz)	3
Typical Settling Time (ns)	2500
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
