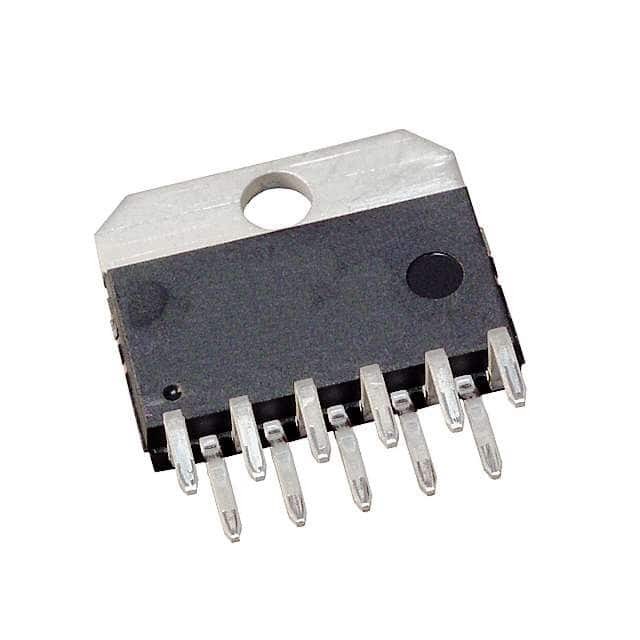

OPA2544T

SKU: 126927

Manufacturer: Texas Instruments

Op Amp Dual High Output Current Amplifier ±35V 11-Pin(11+Tab) TO-220 Tube

940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Output Current Amplifier
Manufacturer Type	High Output Current Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	5@±35V
Minimum Dual Supply Voltage (V)	±10
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±35
Maximum Input Offset Current (uA)	0.00005@±35V
Maximum Input Bias Current (uA)	0.00005@±35V
Typical Output Current (mA)	2000
Power Supply Type	Dual
Typical Slew Rate (V/us)	8@±35V
Typical Input Noise Voltage Density (nV/rtHz)	36@±35V
Typical Voltage Gain (dB)	103
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.003@±35V
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	1.4
Typical Settling Time (ns)	2500
Shut Down Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	TO-220
Pin Count	11
Terminal Form	Through Hole
Package Height	11.1(Max)
Package Length	20.27(Max)
Package Width	4.62(Max)
PCB changed	11
