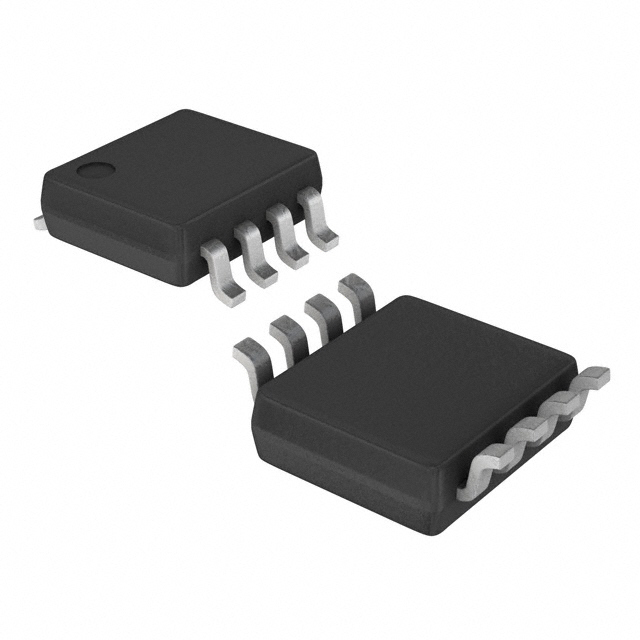

OPA2348AIDGK

SKU: 63353

Manufacturer: Texas Instruments

Op Amp Dual Low Power Amplifier R-R I/O 5.5V 8-Pin VSSOP Tube

2390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	5@5V
Minimum Single Supply Voltage (V)	2.5
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.00001@5.5V
Maximum Input Bias Current (uA)	0.00001@5.5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.5@5.5V
Typical Input Noise Voltage Density (nV/rtHz)	35@5.5V
Typical Voltage Gain (dB)	108
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.004@5.5V
Minimum PSRR (dB)	84.44(Typ)
Minimum CMRR (dB)	60
Minimum CMRR Range (dB)	60 to 65
Typical Gain Bandwidth Product (MHz)	1
Typical Settling Time (ns)	7000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
