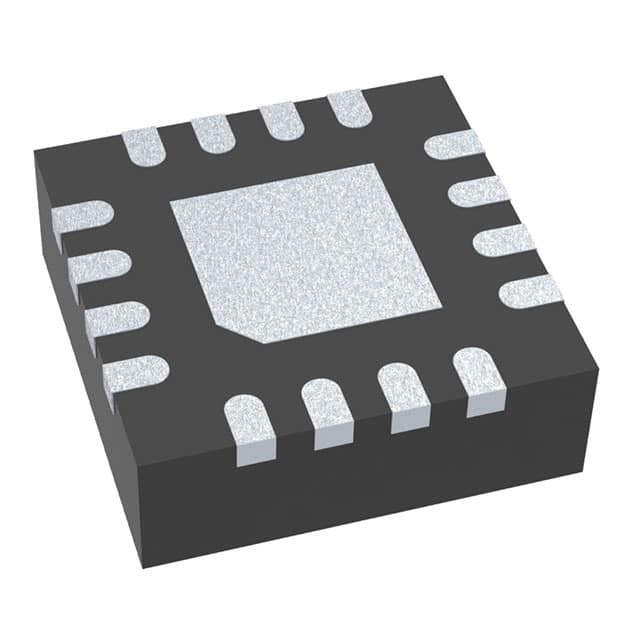

ONET1191PRGTR

SKU: 27912

Manufacturer: Texas Instruments

SP Amp Limiting Amp Single 3.6V 16-Pin VQFN EP T/R

7920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b.1
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Limiting Amplifier
Number of Elements per pcs	4
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	44
Output Type	Differential
Typical Output Current (mA)	20(Max)
Operating Supply Voltage-Max (V)	3.6
Maximum Supply Voltage Range (V)	<5
Minimum Single Supply Voltage (V)	2.9
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Maximum Supply Current (mA)	49@3.6V@-40C to 85C
Maximum Input Resistance (MOhm)	0.00005(Typ)@3.3V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.15(Max)
Package Width	3.15(Max)
PCB changed	16
