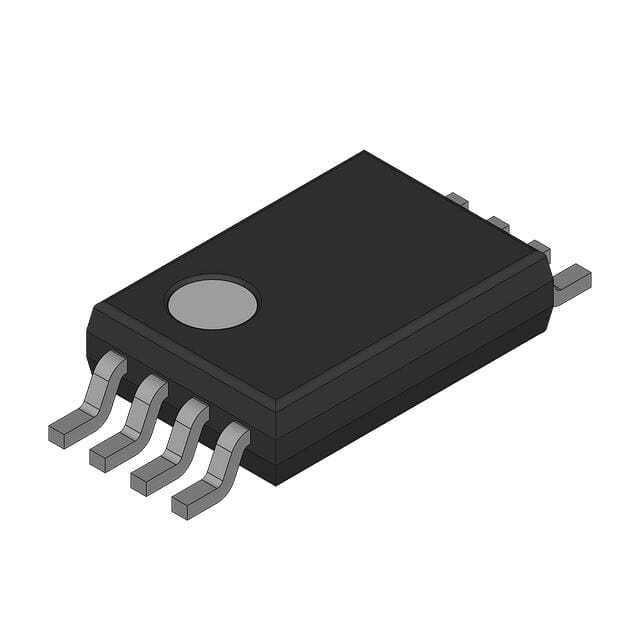

NE555PW

SKU: 94355

Manufacturer: Texas Instruments

Standard Timer Single 0°C 70°C 8-Pin TSSOP Tube

4010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Internal Timers	1
Output Logic Level	TTL
Maximum High Level Output Current (mA)	-200
Maximum Low Level Output Current (mA)	200
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	16
Maximum Quiescent Current (mA)	15
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	8
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	4.5(Max)
PCB changed	8
