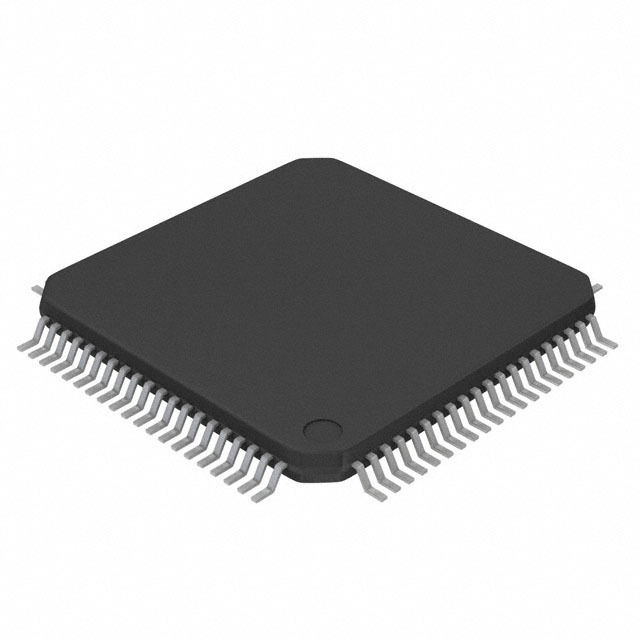

MSP430F5525IPN

SKU: 73202

Manufacturer: Texas Instruments

MCU 16-bit MSP430 RISC 64KB Flash 2.5V/3.3V 80-Pin LQFP Tray

1280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	MSP430
Instruction Set Architecture	RISC
Device Core	MSP430
Core Architecture	MSP430
Maximum CPU Frequency (MHz)	25
Maximum Clock Rate (MHz)	25
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	6KB
Programmability	Yes
Interface Type	I2C/SPI/UART/USB
Number of I/Os	63
No. of Timers	4
Number of ADCs	Single
ADC Channels	16
ADC Resolution (bit)	12
USART	0
UART	2
USB	1
SPI	4
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	80
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	12.2(Max)
Package Width	12.2(Max)
PCB changed	80
