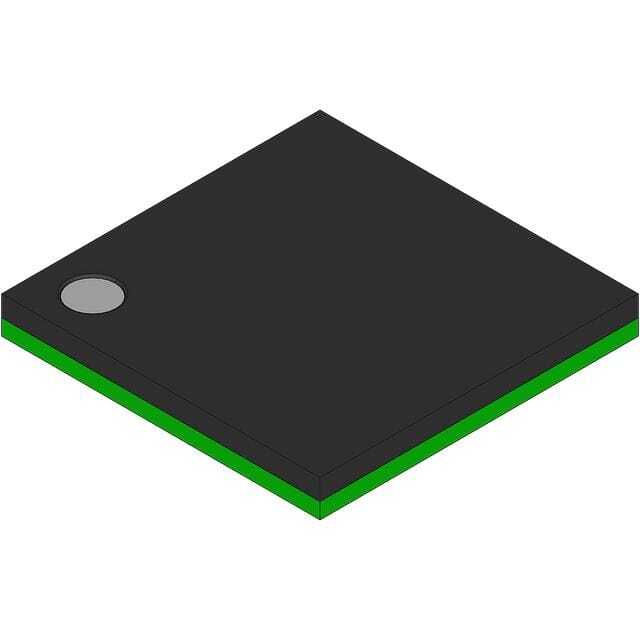

MSP430F2617TZQW

SKU: 126796

Manufacturer: Texas Instruments

MCU 16-bit MSP430 RISC 92KB Flash 2.5V/3.3V 113-Pin BGA MICROSTAR JUNIOR Tray

2100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	MSP430
Instruction Set Architecture	RISC
Device Core	MSP430
Core Architecture	MSP430
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	92KB
RAM Size	8KB
Programmability	Yes
Interface Type	I2C/SCI/SPI/UART
Number of I/Os	64
No. of Timers	2
PWM	2
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	0
UART	2
USB	0
SPI	4
I2C	2
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	BGA MICROSTAR JUNIOR
Pin Count	113
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.77(Max)
Package Length	7.1(Max)
Package Width	7.1(Max)
PCB changed	113
