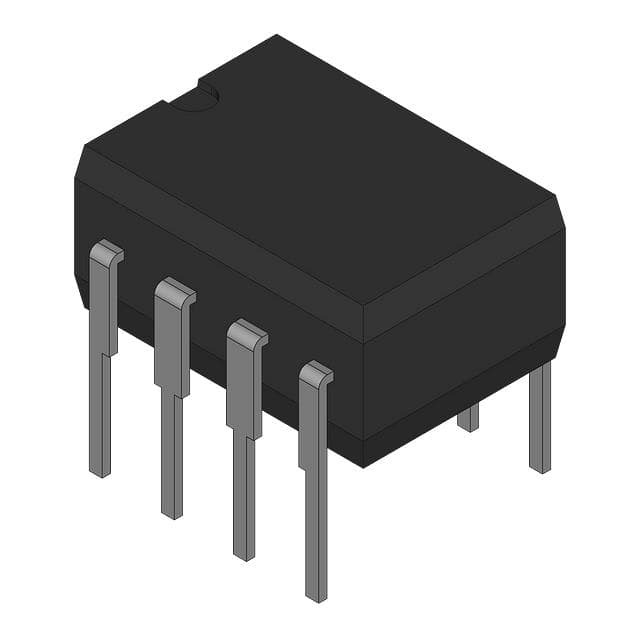

LT1013MJG

SKU: 158030

Manufacturer: Texas Instruments

Op Amp Dual Low Offset Voltage Amplifier ±15V/30V 8-Pin CDIP Tube

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Low Offset Voltage Amplifier
Manufacturer Type	Low Offset Voltage Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	0.45@5V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Maximum Input Offset Current (uA)	0.002@5V
Maximum Input Bias Current (uA)	0.05@5V
Maximum Supply Current (mA)	1@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.4@±15V
Typical Input Noise Voltage Density (nV/rtHz)	24@±15V
Typical Voltage Gain (dB)	120
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.07@±15V
Minimum CMRR (dB)	97
Minimum CMRR Range (dB)	95 to 105
Shut Down Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Packing Method	Tube
Original Package	CDIP
Pin Count	8
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	7.11(Max)
PCB changed	8
