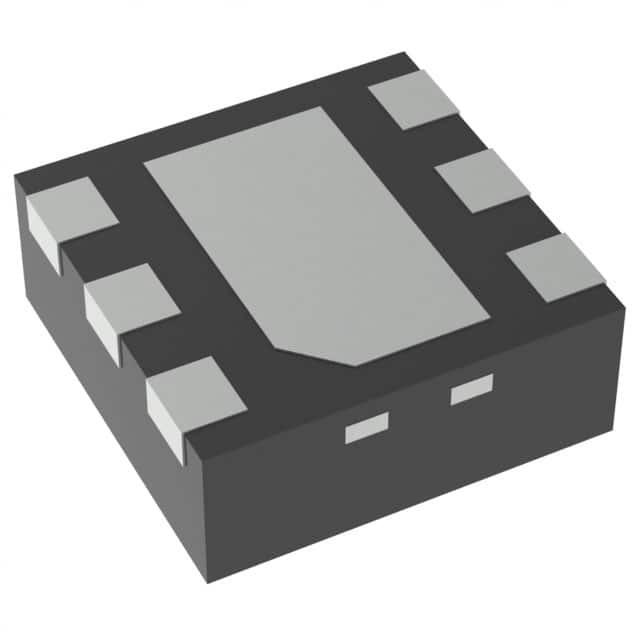

LP5912-5.0DRVR

SKU: 132905

Manufacturer: Texas Instruments

LDO Regulator Pos 5V 0.5A 6-Pin WSON EP T/R

8920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	1.6
Maximum Input Voltage (V)	6.5
Maximum Dropout Voltage @ Current (V)	0.18@500mA
Line Regulation	0.8%/V(Typ)
Load Regulation	0.0022%/mA(Typ)
Maximum Quiescent Current (mA)	0.055
Junction to Ambient	71.2°C/W
Junction to Case	93.7°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	6
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	2.1(Max)
Package Width	2.1(Max)
