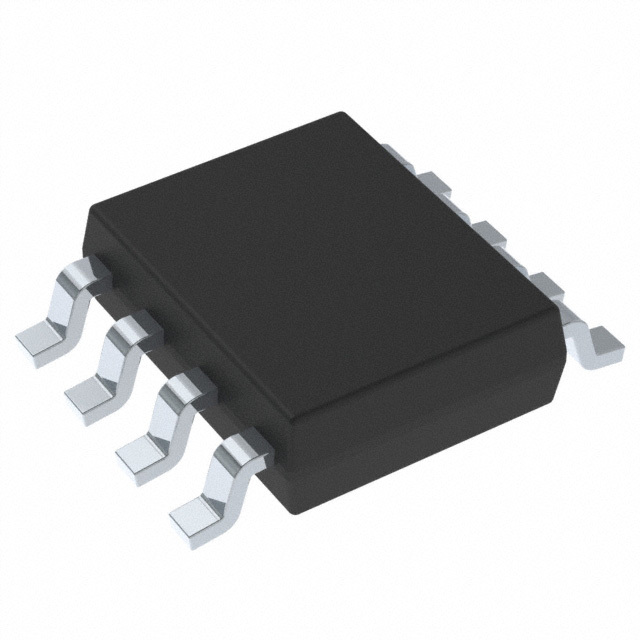

LP38841MR-ADJ

SKU: 83199

Manufacturer: Texas Instruments

LDO Regulator Pos 0.56V to 1.5V 0.8A 8-Pin HSOIC EP Rail

1640 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1.5
Output Type	Adjustable
Output Voltage (V)	0.56 to 1.5
Maximum Output Current (A)	0.8
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	5.5
Maximum Dropout Voltage @ Current (V)	0.12@800mA
Line Regulation	0.01%/V(Typ)
Load Regulation	0.4%/A
Maximum Quiescent Current (mA)	35
Junction to Ambient	43°C/W(Typ)
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Industrial
Packing Method	Rail
Original Package	HSOIC EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
