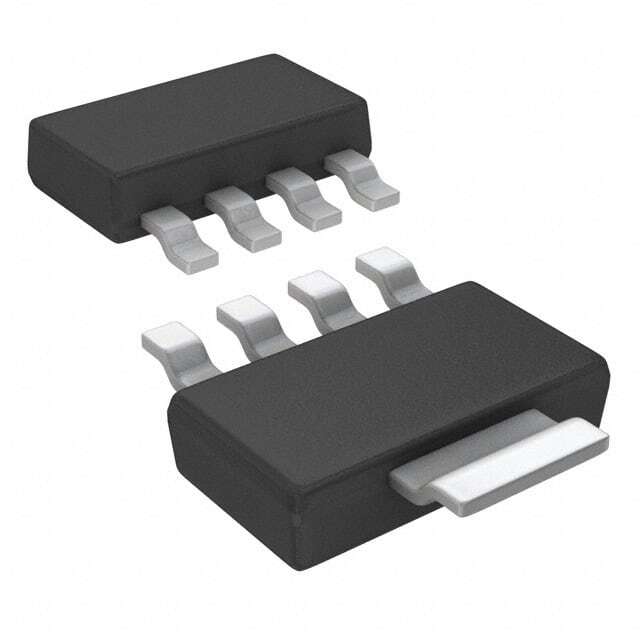

LP38693MP-3.3/NOPB

SKU: 111535

Manufacturer: Texas Instruments

LDO Regulator Pos 3.3V 0.5A 5-Pin(4+Tab) SOT-223 T/R

1240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	3.3
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	2.7
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	0.11@100mA
Line Regulation	0.03%/V(Typ)
Load Regulation	1.8%/A(Typ)
Maximum Quiescent Current (mA)	0.1
Typical Ground Current @ Full Load (mA)	0.055
Junction to Ambient	50.6°C/W
Junction to Case	44.4°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	5
Standard Package Method	SOT-223
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.56
PCB changed	4
Tab	Tab
