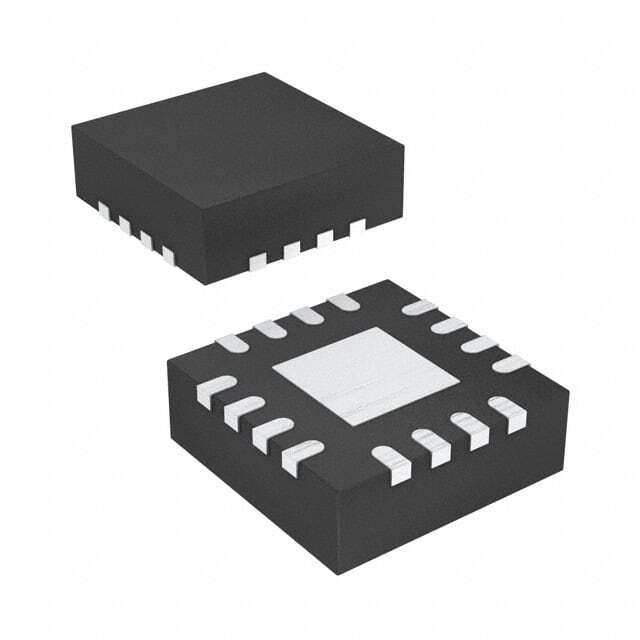

LOG114AIRGVR

SKU: 19537

Manufacturer: Texas Instruments

SP Amp LOG Amp Quint ±5.5V/11V 16-Pin VQFN EP T/R

18100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Logarithmic Amplifier
Number of Elements per pcs	5
Number of Channels per Chip	5
Typical Gain Bandwidth Product (MHz)	50
Maximum Voltage Gain Range (dB)	100 to 125
Maximum Voltage Gain (dB)	100(Typ)
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	70(Typ)
Minimum PSRR (dB)	150.46(Typ)
Maximum Input Offset Voltage (mV)	7@5V
Operating Supply Voltage-Max (V)	±5.5
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	4.8
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	11
Minimum Dual Supply Voltage (V)	±2.4
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±5.5
Maximum Input Bias Current (uA)	1(Typ)@5V
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Power Supply Type	Dual
Pin Count	16
Standard Package Method	QFN
Original Package	VQFN EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.15(Max)
Package Width	4.15(Max)
PCB changed	16
