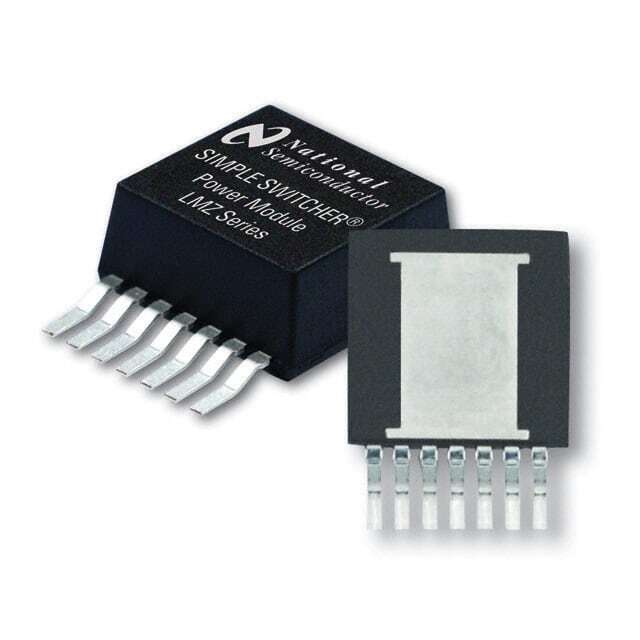

LMZ12002TZ-ADJ Texas Instruments

LMZ12002TZ-ADJ

SKU: 33700

Manufacturer: Texas Instruments

Module DC-DC 1-OUT 0.8V to 6V 2A 12W 7-Pin TO-PMOD T/R

Request Free Samples

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Step Down
Isolation	Non-Isolated
Number of Outputs	1
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	20
Output Voltage (V)	0.8 to 6
Output Current (A)	2
Output Power (W)	12
Input/Output Type	DC/DC
Switching Frequency (kHz)	1000
Switching Regulator	Yes
Load Regulation	1.5mV/A(Typ)
Line Regulation	0.01%(Typ)
Efficiency (%)	92
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Output Type	Adjustable
Original Package	TO-PMOD
Pin Count	7
Terminal Form	Surface Mount
Package Height	4.57
Package Length	10.16
Package Width	9.85
