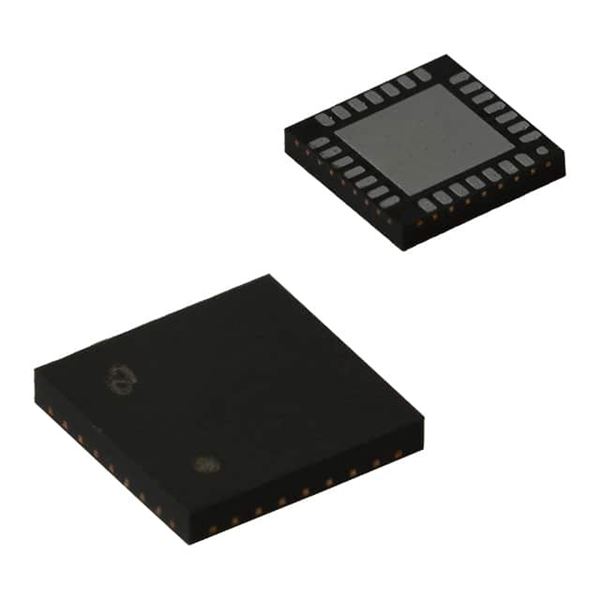

LMX2522LQ1635

SKU: 47954

Manufacturer: Texas Instruments

Clock Generator 440.76MHz-IN 1649.62MHz-OUT 28-Pin WQFN EP T/R

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	5A991G
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs per Chip	1
Clock Input Frequency (MHz)	440.76(Typ)
Maximum Output Frequency (MHz)	1649.62
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	2.8
Operating Supply Voltage-Max (V)	3.3
Operating Temperature-Min	-30
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	5
Package Width	5
PCB changed	28
