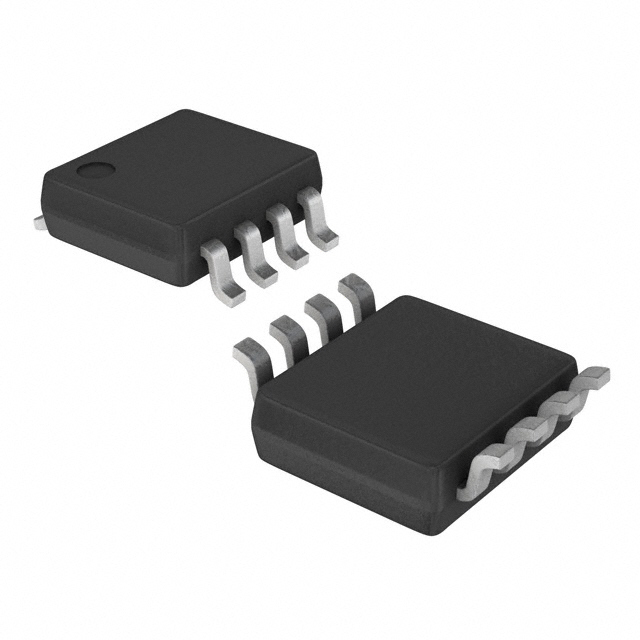

LMV762MM/NOPB

SKU: 97311

Manufacturer: Texas Instruments

Comparator Dual 5.25V Automotive 8-Pin VSSOP T/R

650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Precision Comparator
Number of Channels per Chip	2
Rail to Rail	No
Typical CMRR (dB)	100
Typical PSRR (dB)	110
Maximum Propagation Delay Time (ns)	225(Typ)
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.25
Maximum Input Offset Voltage (mV)	0.2(Typ)@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.25
Maximum Input Bias Current (uA)	0.00005@5V
Maximum Supply Current (mA)	0.45(Typ)@5V
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	SOP
Pin Count	8
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
