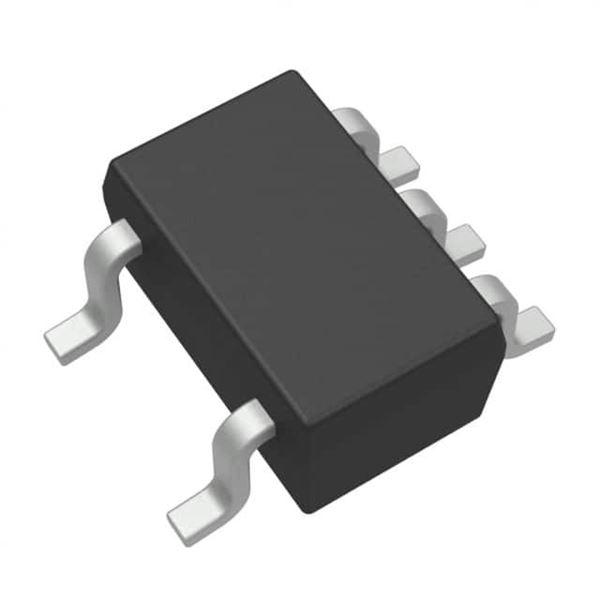

LMV7239QM7X/NOPB

SKU: 136721

Manufacturer: Texas Instruments

Comparator Single R-R I/P 5.5V Automotive 5-Pin SC-70 T/R

2820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Manufacturer Type	Ultra Low Power Comparator
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input
Process Technology	BiCMOS
Typical CMRR (dB)	67
Typical PSRR (dB)	85
Maximum Propagation Delay Time (ns)	89(Typ)
Output Type	Push-Pull
Operating Supply Voltage-Max (V)	5.5
Maximum Input Offset Voltage (mV)	6@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.4@5V
Maximum Quiescent Current (mA)	0.095@5V
Maximum Test Temperature (°C)	125
Minimum Test Temperature (°C)	-40
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Standard Package Method	SOT-323
Original Package	SC-70
Pin Count	5
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.15(Max)
Package Width	1.4(Max)
PCB changed	5
