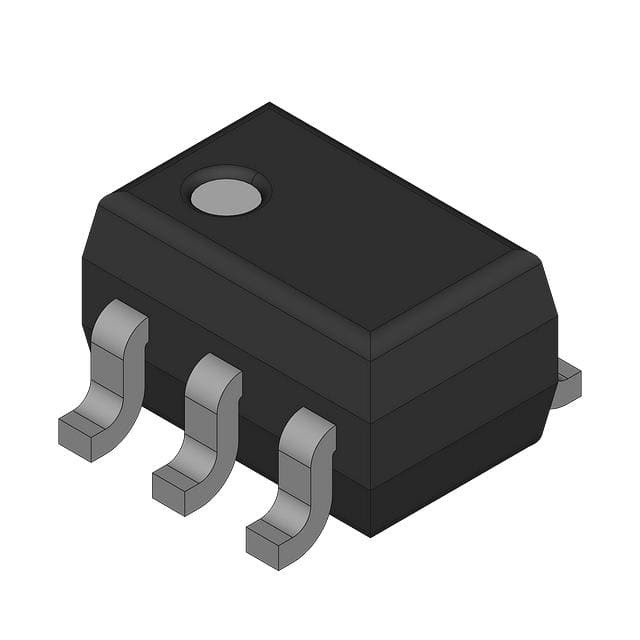

LMV551MG

SKU: 19517

Manufacturer: Texas Instruments

Op Amp Single Micropower Amplifier R-R O/P 5.5V 5-Pin SC-70 T/R

2450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Type	Micropower Amplifier
Manufacturer Type	Micropower Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Output
Maximum Input Offset Voltage (mV)	3@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.02@5V
Maximum Input Bias Current (uA)	0.038@5V
Maximum Supply Current (mA)	0.046@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	1@5V
Typical Input Noise Voltage Density (nV/rtHz)	70@5V
Typical Voltage Gain (dB)	90
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.15@5V
Minimum PSRR (dB)	78
Minimum CMRR (dB)	76
Minimum CMRR Range (dB)	75 to 80
Typical Gain Bandwidth Product (MHz)	3
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SC-70
Pin Count	5
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	2.15(Max)
Package Width	1.4(Max)
PCB changed	5
