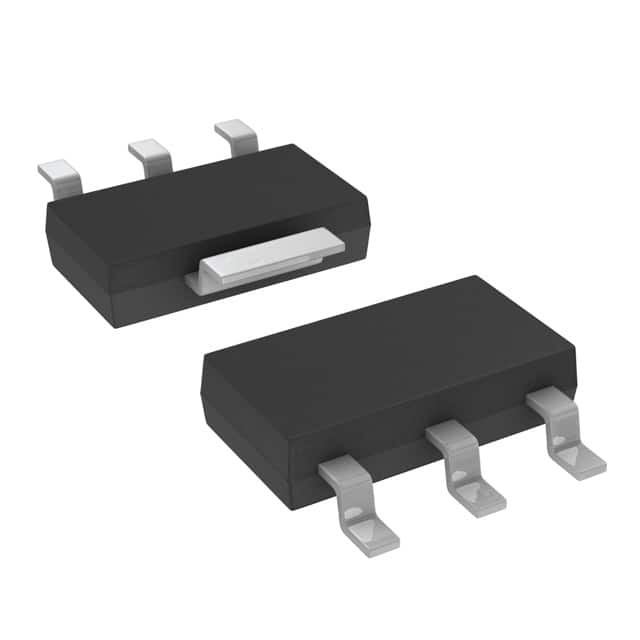

LMS8117AMP-ADJ

SKU: 104308

Manufacturer: Texas Instruments

LDO Regulator Pos 1.25V to 13.8V 1A 4-Pin(3+Tab) SOT-223 T/R

6590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.25 to 13.8
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	15
Maximum Dropout Voltage @ Current (V)	1.15@100mA
Reference Voltage (V)	1.262
Line Regulation	0.035%(Typ)
Load Regulation	0.2%(Typ)
Junction to Ambient	136°C/W(Typ)
Junction to Case	15°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
Tab	Tab
