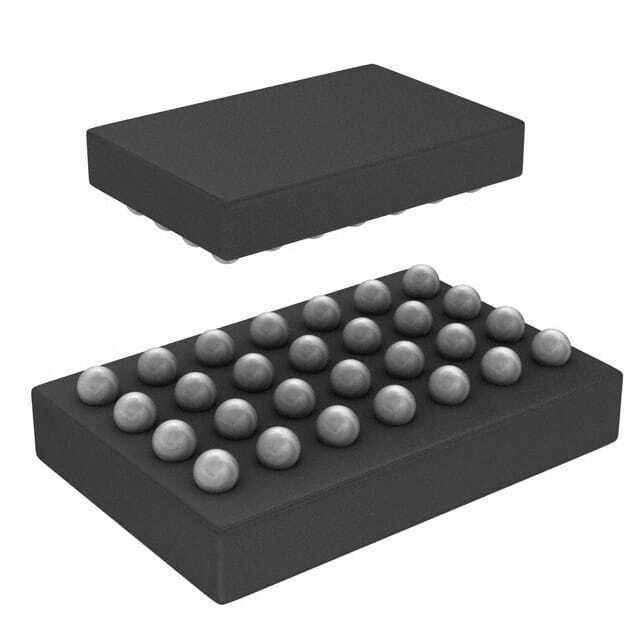

    LMR24220TLX/NOPB

    SKU: 158006
    Manufacturer: Texas Instruments
    Conv DC-DC 4.5V to 42V Synchronous Step Down Single-Out 0.8V to 24V 2A 28-Pin DSBGA T/R
    3910 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type Synchronous Step Down
    Output Type Adjustable
    Switching Frequency (kHz) 1000
    Switching Regulator Yes
    Number of Outputs 1
    Output Voltage (V) 0.8 to 24
    Maximum Output Current (A) 2
    Minimum Input Voltage (V) 4.5
    Maximum Input Voltage (V) 42
    Operating Supply Voltage (V) 4.5 to 42
    Typical Quiescent Current (uA) 700
    Maximum ESD Protection Voltage (kV) ±2@HBM
    Operating Temperature-Min -20
    Operating Temperature-Max 125
    Packing Method Tape and Reel
    Original Package DSBGA
    Pin Count 28
    Standard Package Method BGA
    Terminal Form Surface Mount
    Package Height 0.41(Max)
    Package Length 3.64
    Package Width 2.5
    PCB changed 28
