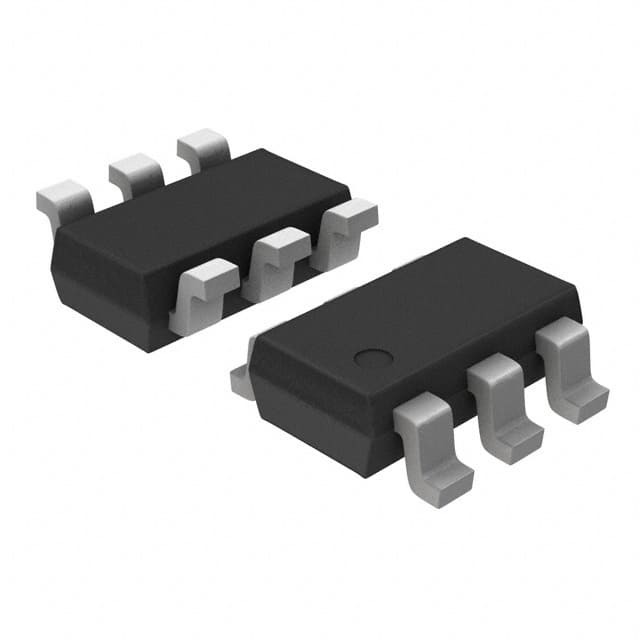

LMR14206XMKX/NOPB

SKU: 55054

Manufacturer: Texas Instruments

Conv DC-DC 4.5V to 42V Step Down Single-Out 0.765V to 34V 0.6A 6-Pin TSOT-23 T/R

19610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1250(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.765 to 34
Maximum Output Current (A)	0.6
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	42
Typical Quiescent Current (uA)	1350
Maximum ESD Protection Voltage (kV)	1.5@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
