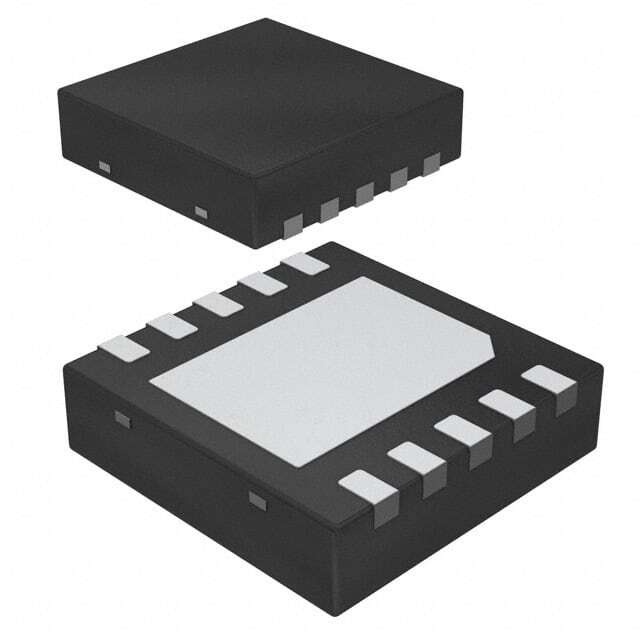

LMR14050QDPRRQ1

SKU: 55055

Manufacturer: Texas Instruments

Conv DC-DC 4V to 40V Synchronous Step Down Single-Out 0.8V to 28V 5A Automotive 10-Pin WSON EP T/R

1020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Synchronous Step Down
Isolation	Non-Isolated
Output Type	Adjustable
Switching Frequency (kHz)	200 to 2500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 28
Maximum Output Current (A)	5
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4 to 40
Typical Switch Current (A)	7.9
Typical Quiescent Current (uA)	40
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	10
