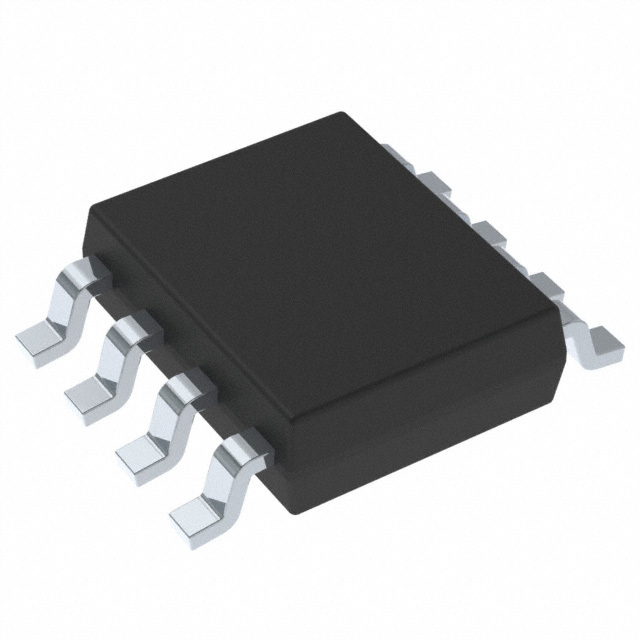

LMR14020SDDA

SKU: 12408

Manufacturer: Texas Instruments

Conv DC-DC 4V to 40V Synchronous Step Down Single-Out 1V to 36V 2A Automotive 8-Pin HSOIC EP Tube

3450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	250 to 2300
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1 to 36
Maximum Output Current (A)	2
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4 to 40
Typical Quiescent Current (uA)	40
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	HSOIC EP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
