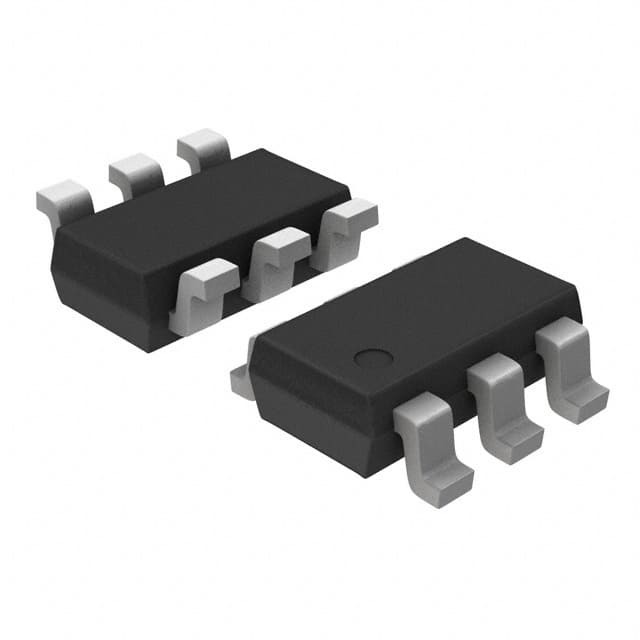

LMP8640QMKX-T/NOPB

SKU: 125584

Manufacturer: Texas Instruments

SP Amp Current Sense Amp Single 12V Automotive 6-Pin TSOT-23 T/R

1240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Yes
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	60
Minimum PSRR (dB)	85
Maximum Input Offset Voltage (mV)	0.9@5V
Operating Supply Voltage-Max (V)	12
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Maximum Input Bias Current (uA)	21@5V
Maximum Supply Current (mA)	2.5@5V
Maximum Input Resistance (MOhm)	0.005(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	6
Standard Package Method	SOT-23
Original Package	TSOT-23
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
