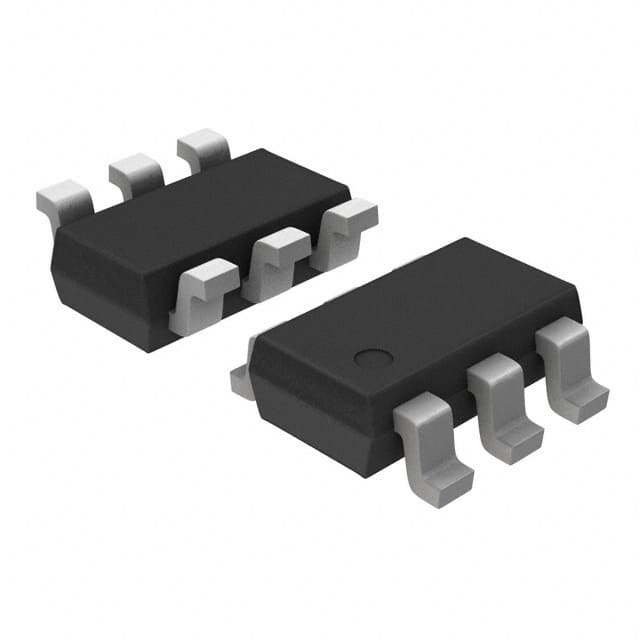

LMP8640HVMK-H

SKU: 104301

Manufacturer: Texas Instruments

SP Amp Current Sense Amp Single 12V Automotive 6-Pin TSOT-23 T/R

980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Unconfirmed
Automotive	No
PPAP	No
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	35 to 50
Maximum Voltage Gain (dB)	40(Typ)
Minimum CMRR Range (dB)	60 to 75
Minimum CMRR (dB)	60
Minimum PSRR (dB)	85
Maximum Input Offset Voltage (mV)	0.9@5V
Operating Supply Voltage-Max (V)	12
Maximum Supply Voltage Range (V)	10 to 15
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Maximum Input Bias Current (uA)	21@5V
Maximum Supply Current (mA)	2.5@5V
Maximum Input Resistance (MOhm)	0.005(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Original Package	TSOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
