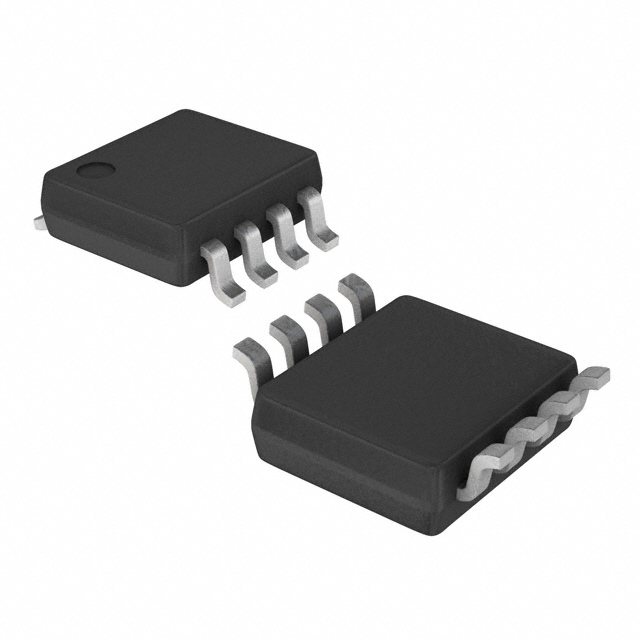

LMP8278QMM/NOPB

SKU: 55050

Manufacturer: Texas Instruments

SP Amp Current Sense Amp Single 5.5V Automotive 8-Pin VSSOP T/R

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	Yes
PPAP	Yes
Type	Current Sense Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	16.99
Minimum CMRR Range (dB)	85 to 95
Minimum CMRR (dB)	85(Typ)
Minimum PSRR (dB)	80(Typ)
Maximum Input Offset Voltage (mV)	2@5V
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Bias Current (uA)	0.00002(Typ)@5V
Maximum Supply Current (mA)	0.4(Typ)@5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Power Supply Type	Single
Original Package	VSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
