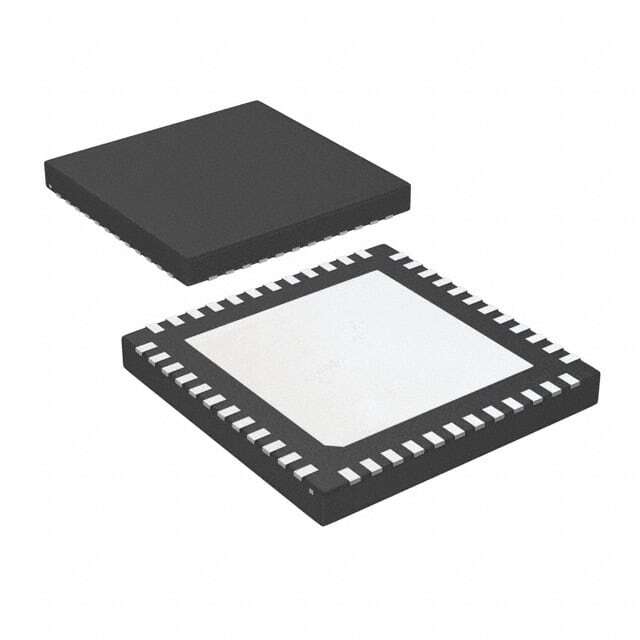

LMK00301SQ/NOPB

SKU: 118552

Manufacturer: Texas Instruments

Clock Fanout Buffer 11-OUT 3-IN 1:1/1:5/1:5 48-Pin WQFN EP T/R

2140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	11
Maximum Input Frequency (MHz)	3100
Maximum Propagation Delay Time @ Maximum CL (ns)	0.885@3.15V to 3.45V
Absolute Propagation Delay Time (ns)	0.885
Maximum Duty Cycle	55%
Input Logic Level	Crystal
Output Logic Level	LVDS
Operating Supply Voltage-Min (V)	3.15
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.45
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	48
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.8(Max) - 0.05
Package Length	7.15(Max)
Package Width	7.15(Max)
PCB changed	48
